QUAD PRO LED DRIVING LIGHTS

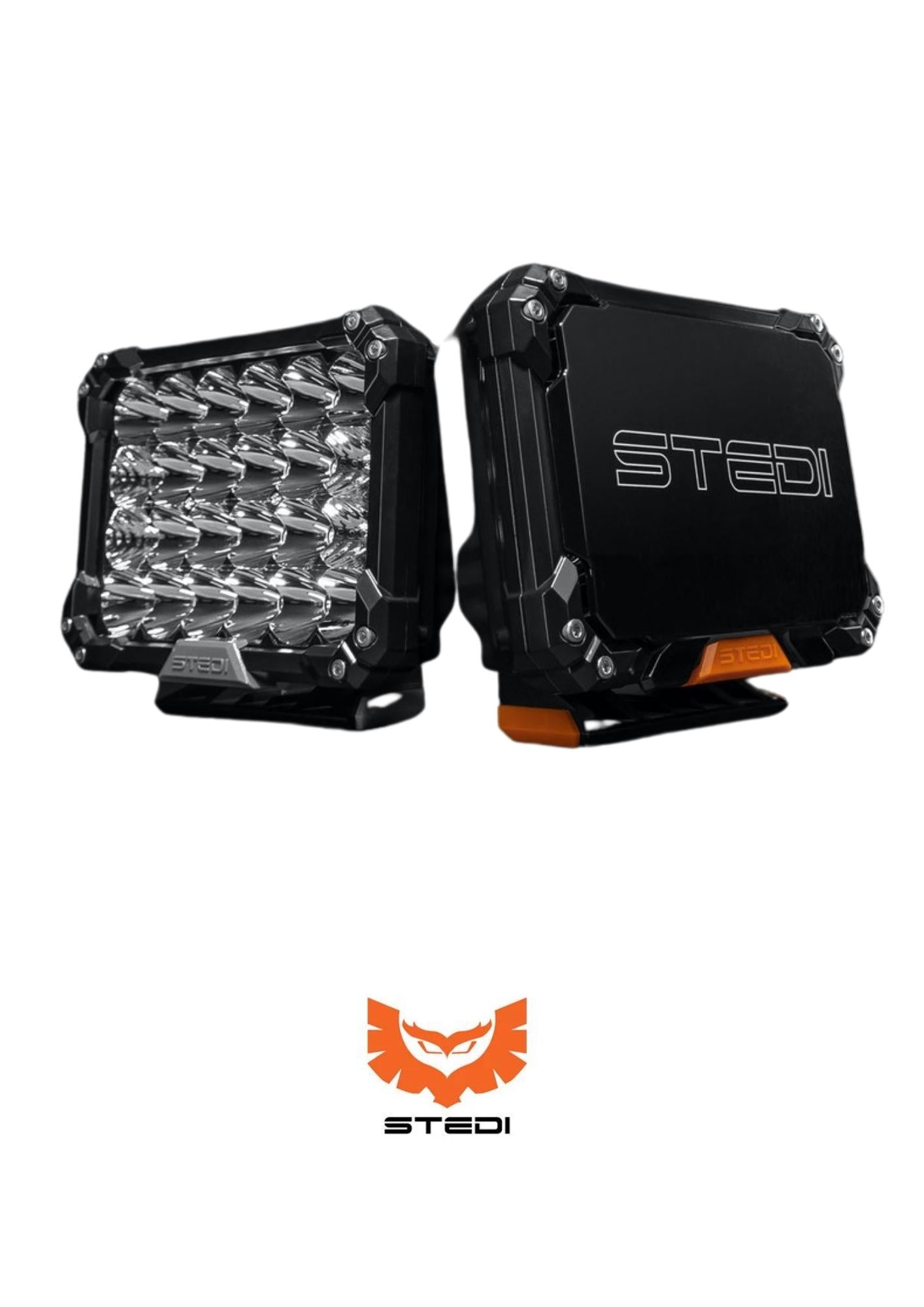

STEDI QUAD PRO LED DRIVING LIGHTS

COMPACT DESIGN. MEGA PERFORMANCE.
The compact-LED driving light space has been fearfully neglected, with offerings looking as underwhelming as their inability to sustain a compact performance. Enter the all-new STEDI QUAD Pro.

RAZOR-SHARP LUMINANCE.
Our Quads showcase a glistening 5700K colour temperature, providing the necessary luminance to cut-through any obstrusive dust and other air-born particles.

WHAT'S INCLUDED
2 x QUAD Pro LED Spot Lights
2 x STENCIL Black Out Covers
1 x Set Orange Colour Caps (fitted)
1 x Set Grey Colour Caps

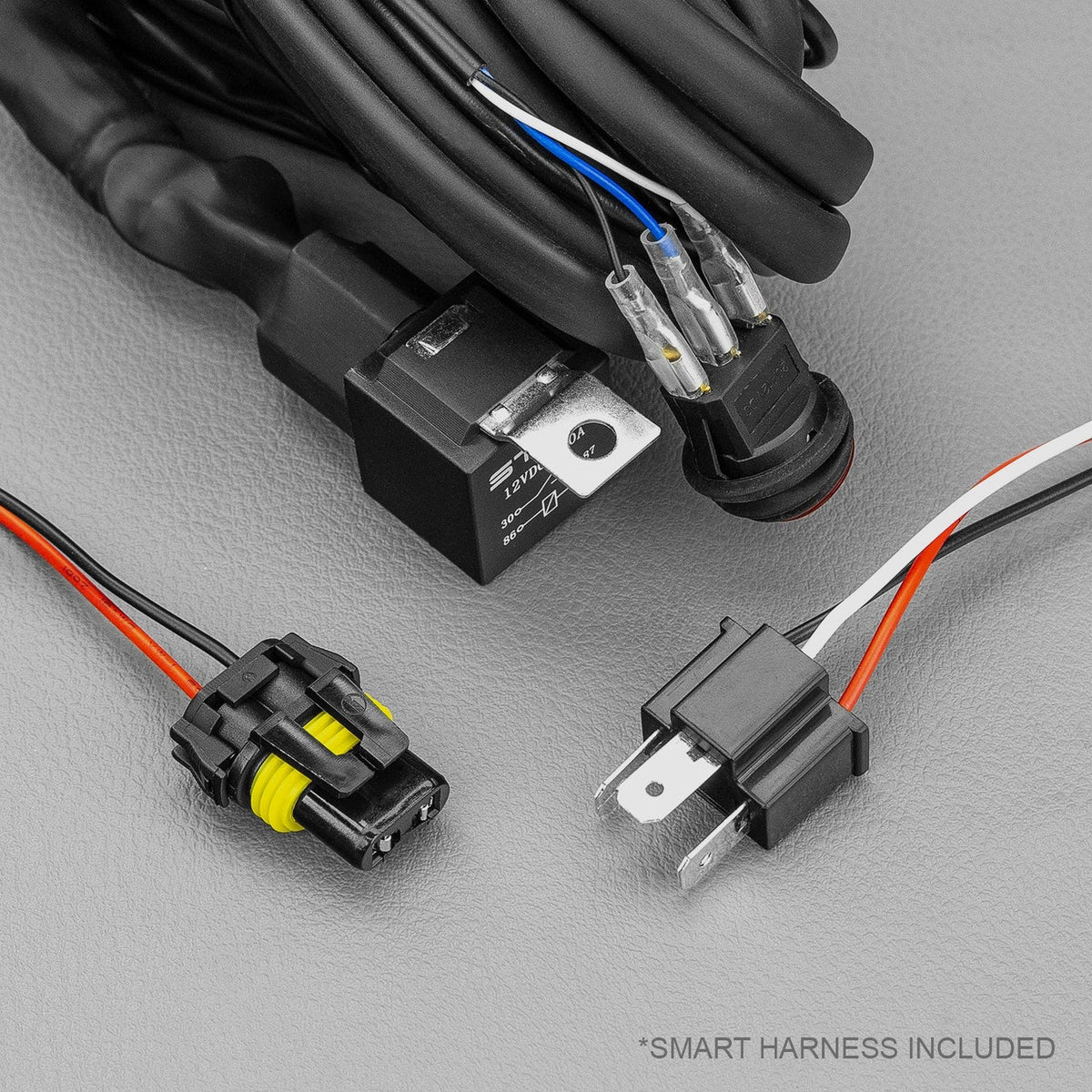

Easy Fit High Beam Wiring Harness
H4 & HB3 adapters to High Beam
Installation Manual

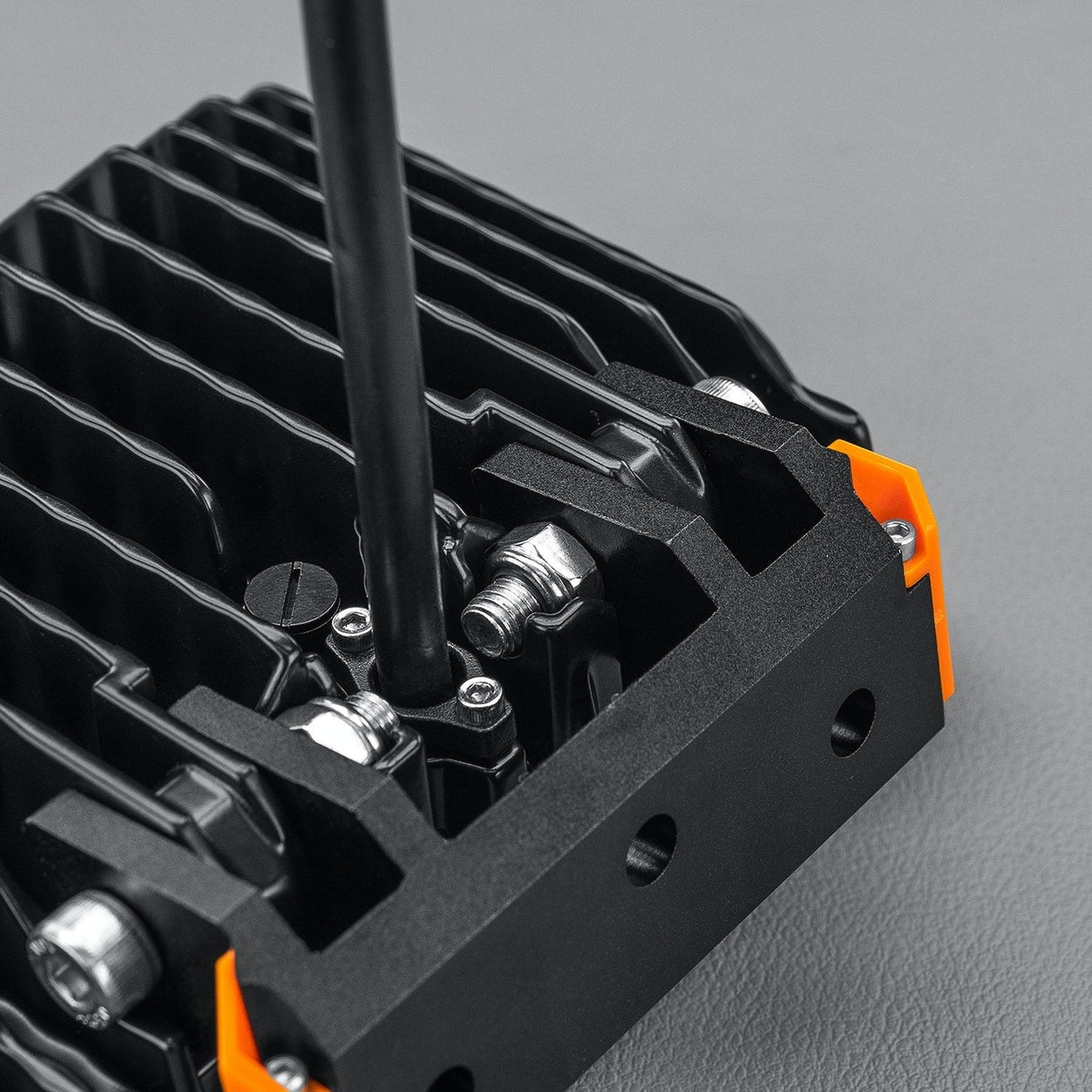

Stainless fitting hardware
TECH SPECS
LED 24 x Oslon High-Flux LED
RAW LUMENS 17,040 (Pair)
TESTED LUMENS 11,360 (Pair)
AMP DRAW 7.4A @ 13.2v (each)
POWER DRAW 97W (each)
CANDELA
693,889cd
BEAM PATTERN 4 x Spread 20 x Pencil Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5700K
VOLTAGE COMPATIBILITY 12v & 24v
LUMEN MAINTENANCE 50,000 LM-80
WEIGHT 1.4Kg (Including cover) (each)

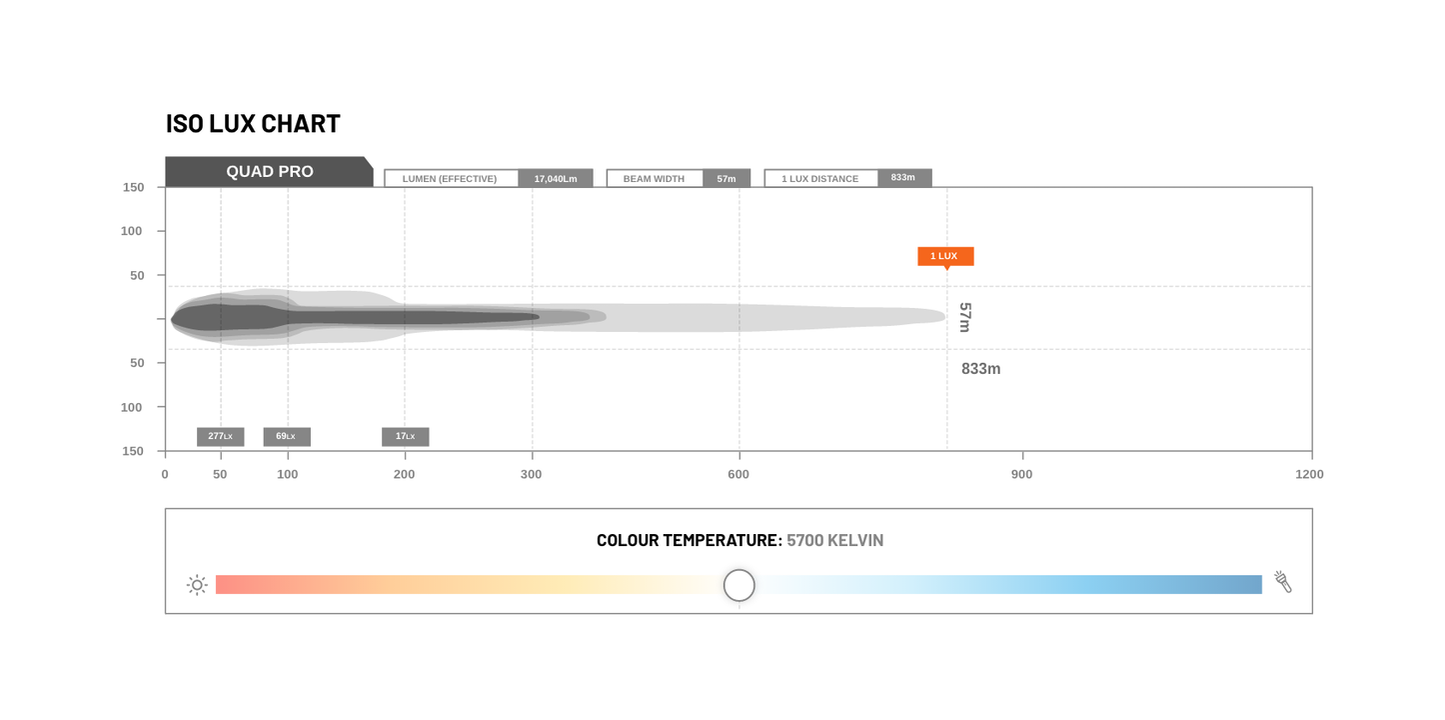

PHOTOMETRIC DATA
10 m 6,938 Lx
50 m 277 Lx
200 m 17 Lx
300 m 7.7 Lx
400 m 4 Lx
500 m 2.7 Lx
833 m 1 Lx
