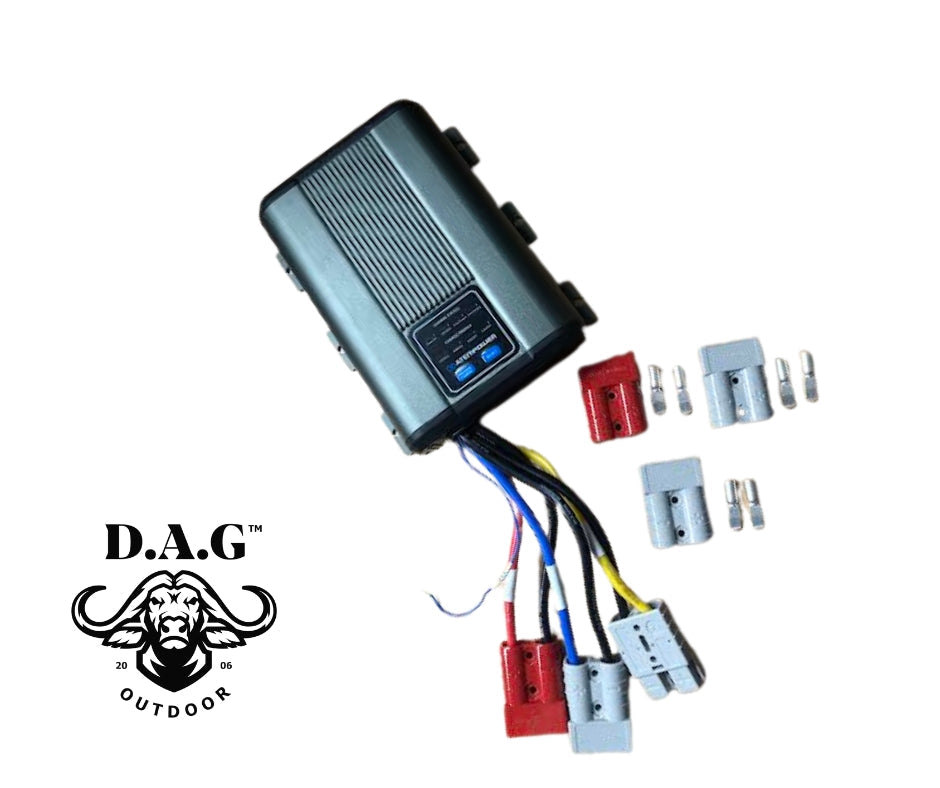

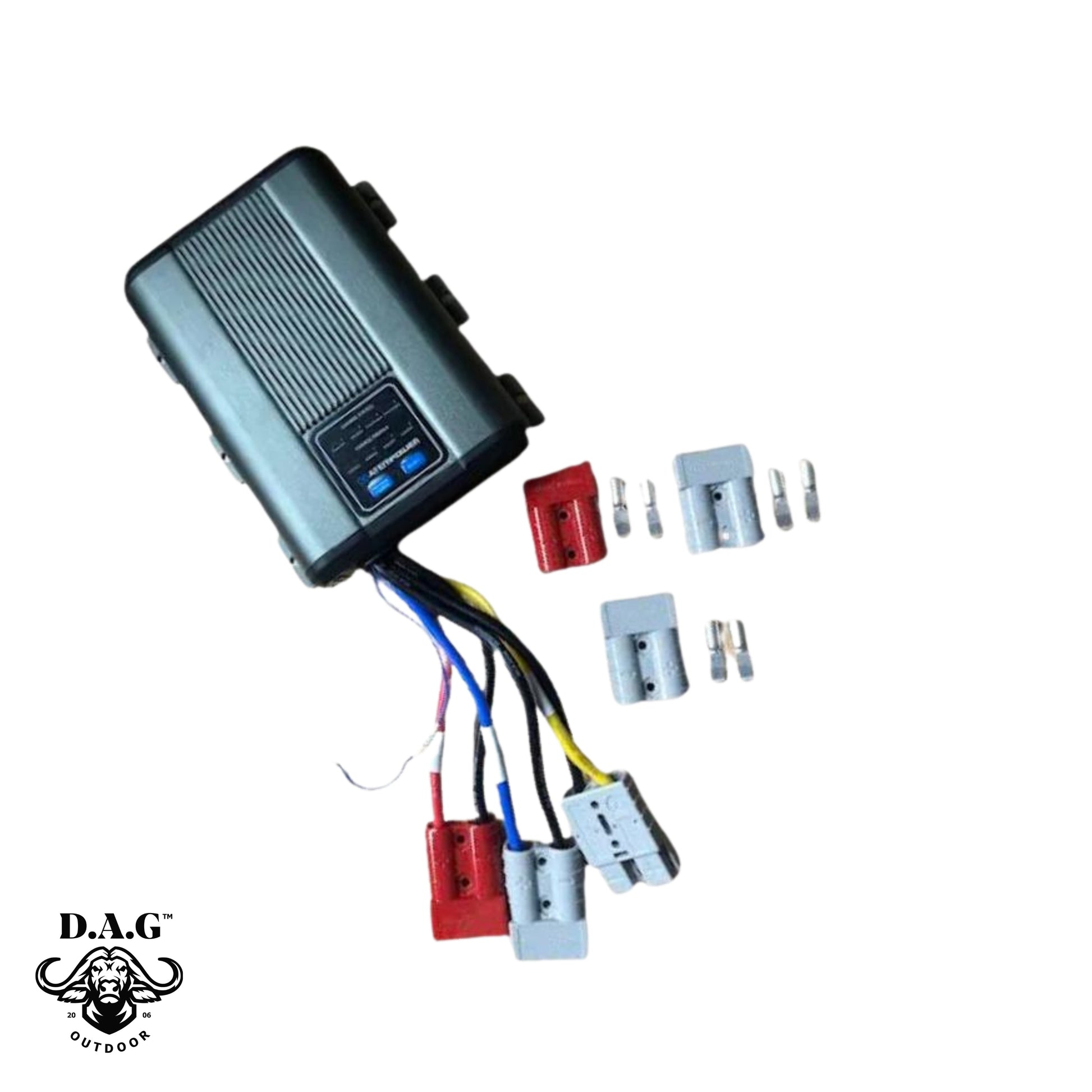

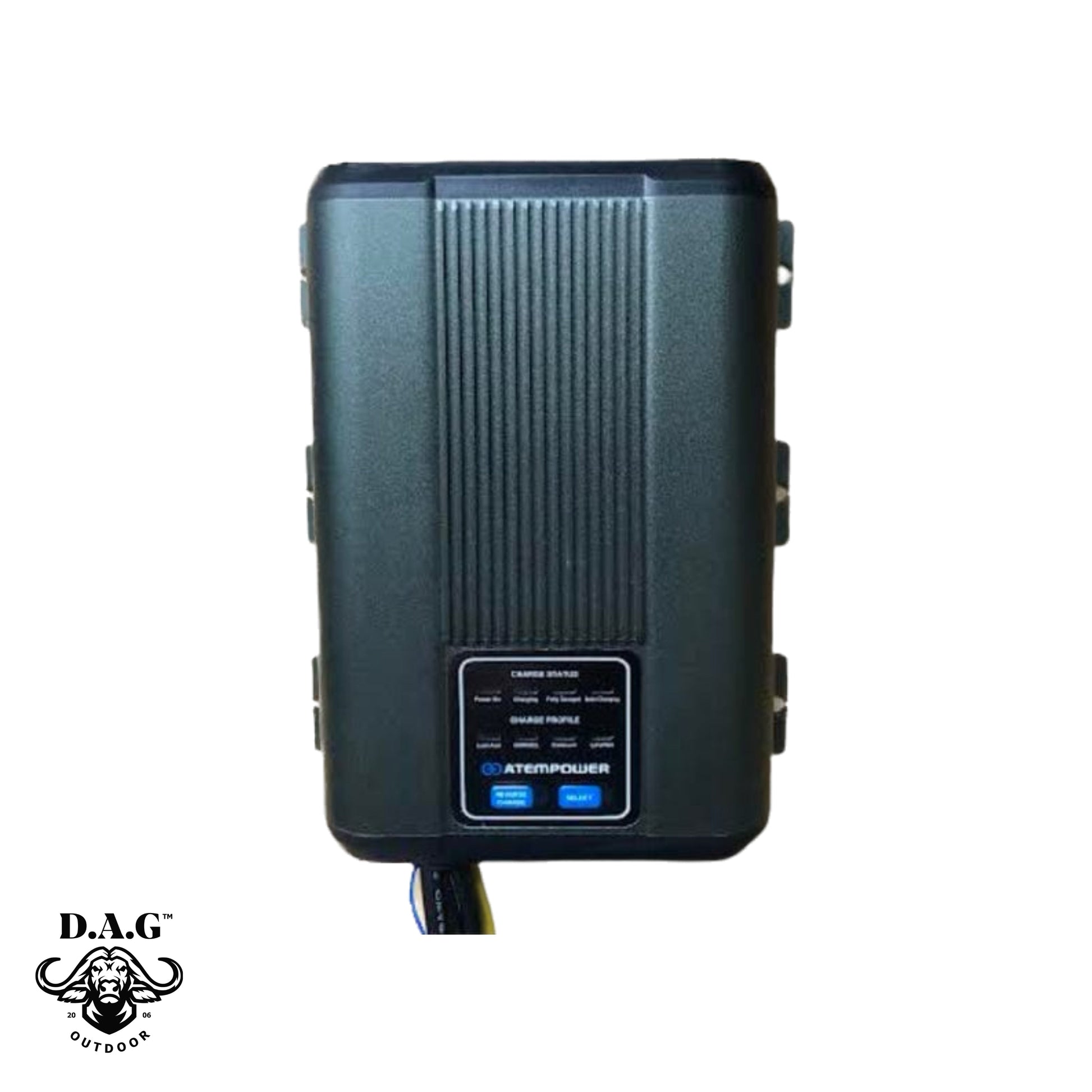

D.A.G 40A DC to DC Charger

Type : Multi Stage Battery Charger

DC Battery Input : 12.4-16.0V

Solar Input : 16.0-25.0V

Output/Charging Voltage : 13.5-15.4V (Stops charging when alternator output or vehicle battery below 12.4V)

DC Output : 40A

Solar Output : 40A

Minimum Start Voltage : 2.0V for battery being charged

Soft Start : Yes

Soft Charge Current : DCDS40@40A

Bulk Charge Voltage : 14.7V(AGM/GEL) 14.4V(Lead Acid) 15.4V(Calcium)14.4V(LION)

Absorption : Constant voltage with automatic amperage control

Equalization : Automatic

Float Charge Voltage : 13.5V(AGM/GEL)13.5V(Lead Acid)13.5V(Calcium)

Float Charge Current : 100mA

Battery Range : 120 to 1200Ah

0-1 Metres : 10AWG

1-5 Metres : 6AWG

5 Metres : 4AWG

Warranty: 1 Year
